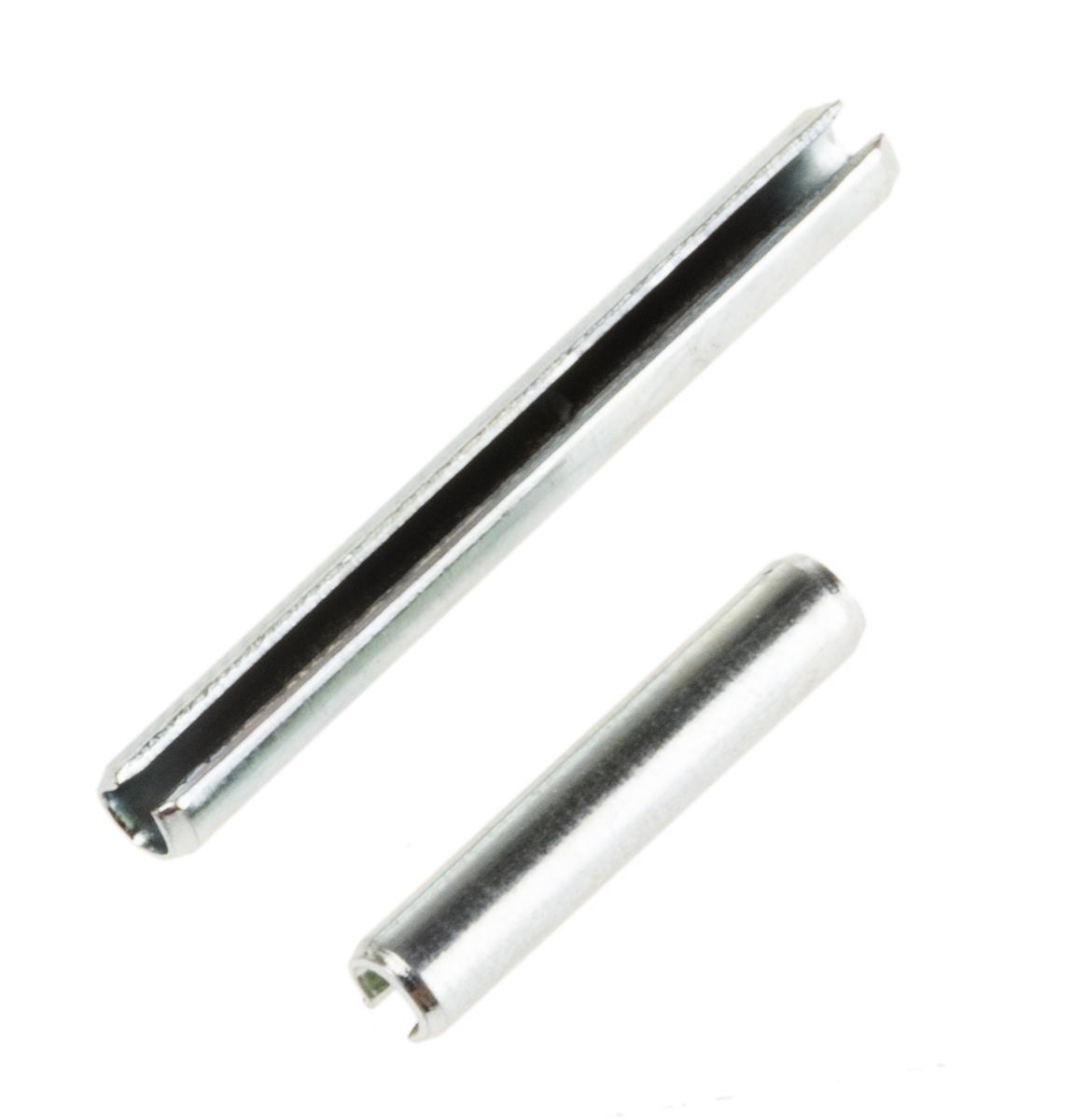

Spring pins are also known as roll pins or coiled pins, which are hollow cylindrical tube-shaped press-fit fasteners and have chamfered ends. Coiled pins are always designed by considering their assembly. In contrast to other pins, coiled pins are ideal for installation because of their square ends, concentric chamfers, and lower insertion forces. In addition to that, they also allow wider hole tolerances because they compress during installation and adapt to the shape of the hole. From this, you can say that coiled pins are the easiest to install and are serviceable.
The pin diameter of the coil represents the normal hole size for the product in which they will be installed. Some guidelines are provided with the pins to provide information on the recommended hole tolerance range. The coiled pin is designed so that the pre-install diameter is greater. And the chamfered diameter is greater than the hole. The chamfer will help align the pin with the hole and compress the coil while inserted into place.
Available Installation Options
Most makers like to utilize a hammer when just a modest bunch of model assemblies are required. At times, especially when the pins are too little even to consider holding while at the same time hammering into the opening, they might pick to utilize a pin driving chuck, so they don’t need to clutch the pin while the pin is being embedded.
Automated pin inserters are liked for high creation volumes since they give a critical profit return on investment (ROI) after some time. Furthermore, automated pin inserters are liked for little breadth pins that are hard to deal with.
Hammer
The simplest method to install coiled spring pins is using a hammer. First, you must align the pin to the hole by hand. Then you need to hammer the pin into the hole just like a nail. Drive the pin to the required insertion depth and ensure that you do not damage the material.
Using a hammer for installation is a great technique when you are a beginner with coiled pins or are going to prototype for a handful of assemblies. However, this method Is not preferred for shorter pins or pins with smaller diameters because it can be difficult to hold these pins, and the operator might hurt themselves.
Air Hammer with Pin Driving Chuck
Another method to install coiled spring pins is an air hammer using a pin driving chuck. Firstly, you need to secure the pin driving the chuck into the hammer or press. After that, insert the coiled pin into the end of the drive using your hand. Position the visible end of the pin into the hole and then complete the installation by moving forward the press handle or actuating the air gun. Presses and air hammers consisting of pin chuck offer better axial alignment, control, and faster cycle times than a hammer.
These are great answers for little to medium volume creation. Furthermore, pin driving checks are savvy and adaptable apparatuses that permit makers to control alignment and insertion depth. Besides, the chuck will hold the pin safely set up preceding and during establishment. The pin driving chuck has an inward punch with a breadth more modest than the opening yet greater than the pin’s chamfer width. This is basic for a powerful installation.
Automatic Installation Equipment
Automatic pin inserts are effective for larger production volumes. This technique completely self-contained. The fastener is placed in a vibratory feeder. And then filled with a shuttle mechanism that places the fastener directly underneath the insertion quill. The shuttle is fixed using a retracting method that places the pin exit close to the assembly for insertion. After that, it is retracted for uninterrupted loading and unloading.
The installation steps followed with an automatic pin inserter are quite simple. The user needs to place the assembly onto the fixture, then run the machine to insert the pin, and finally remove the assembly from the fixture. The provision of pins onto the feeder bowl must be restocked periodically. There is no need for the operator to handle the pins throughout any part of the entire installation process. This is because the operator only needs to put the spring pins into the feeder bowl directly from the shipping container as it is required.
Customized Pin Inserters
You can also get the option to customize an automatic pin inserter. And add some features according to your requirements, such as infrared safety light curtain, adjustable workstation, distance monitoring, force monitoring, rotary index tables, part presence sensing, drilling and pinning combination, multiple pin insertion per cycle, etc. You can also customize the feeder bowl to solve errant products or debris.
